Degree of protection of light fixtures against the penetration of solids and liquids.
IEC 529 - EN 60529 Standard.
(First digit – Solids / Second digit – Liquids)
IP55
5. Protected against dust penetration.
5. Protected against jets of water.
IP65
6. Hermetically protected against dust.
5. Protected against jets of water.
IP66
6. Hermetically protected against dust.
6. Protected against sea swells and similar.
Degree of protection against mechanical impacts provided by the enclosure.
In accordance with EN 50102.
IK08 (0.5 J), IK09 (1 J), IK10 (2 J).
CLASS I.
Functional insulation in all its parts and ground connection.
CLASS II.
Double reinforced insulation to avoid voltage in exposed metal parts.
Product certificates
All our products comply with applicable European Directives and Standards, authorizing free circulation within the European Economic Area (EEA). We also comply with the Electromagnetic Compatibility (EMC) Directive and the Low Voltage Directive. We certify with ENAC-accredited external laboratories.
We comply with the Restriction of Hazardous Substances (RoHS) Directive for electrical and electronic components. We also comply with the Waste Directive (RAEE/WEEE) for respectful waste management.
Lighting the way

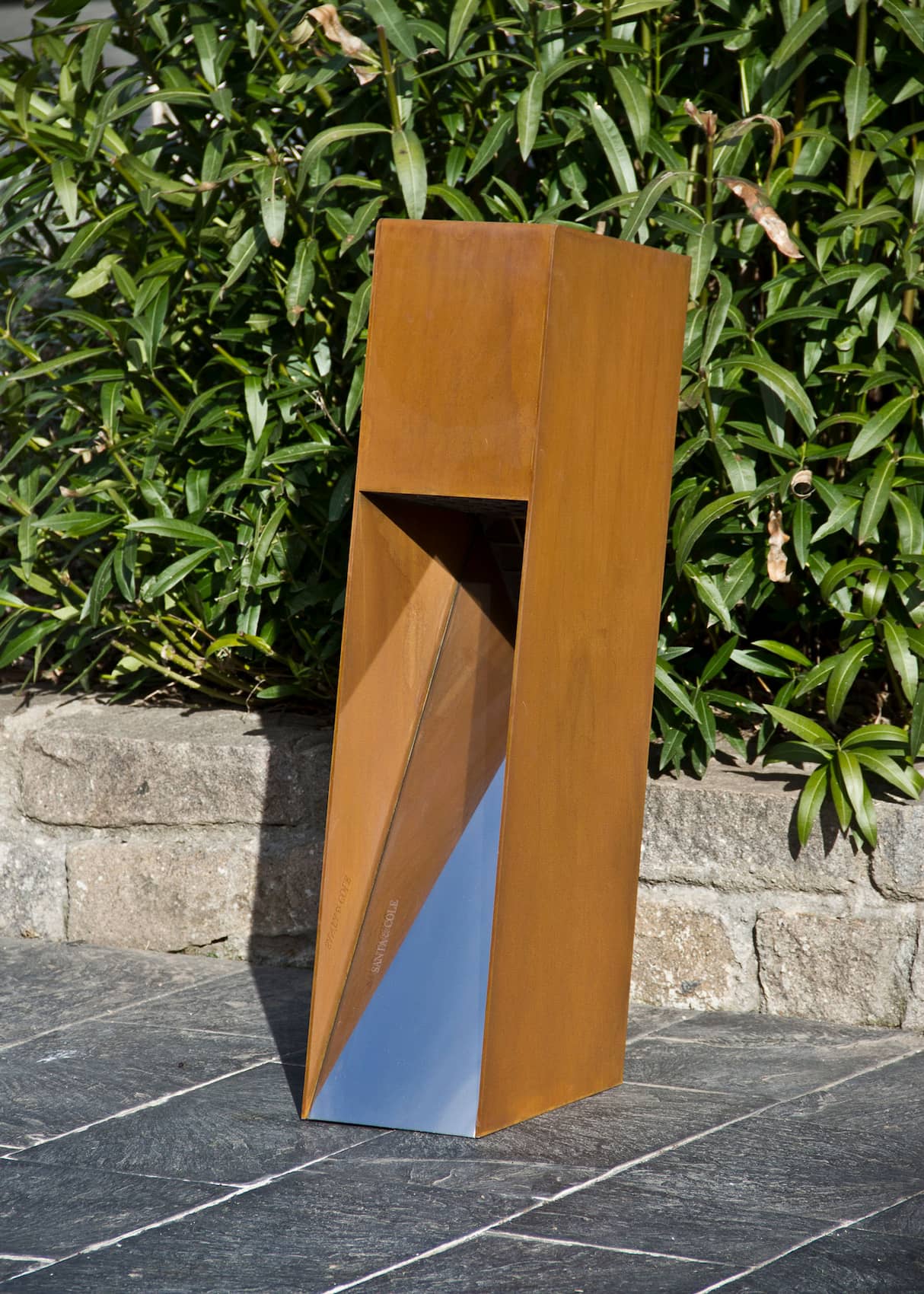

Suitable for outdoor pedestrian areas and landscaped areas. The Area 60 residential outdoor pathway light is the perfect element to define the horizontal plane of movement, among lights and shadows, while presenting a unique and recognizable character during the day.
- Pathway light consisting of corten 4 mm thick steel sheet and 1.2 mm thick AISI 304 stainless steel polished mirror finish (optionally in AISI 316 stainless steel).
- Translucent 3 mm thick polycarbonate diffuser and protection grid made of AISI 304 stainless steel.
- A2 stainless steel screws.
Corten
The colours shown are purely indicative.
Other colours are available upon request.
Check finishes for marine environments.
3000K 80CRI
Integrated LED
10W Output
230V 50Hz Input
Pathway Lamp
Ground washer
Deep Beam
All our elements can be remotely controlled, both individually and in groups, by means of the most standardised control systems, in order to considerably reduce energy consumption.
TRIAC/Phase-cut
The TRIAC regulation system allows adjusting the product’s light intensity by controlling the power delivered through phase-cut.
ON/OFF
Simple on and off.
- The pathway light comes packaged with the installation and assembly instructions and screws.
- The element is fixed to the pavement using a concrete block on-site, with a groove for electrical connection, and four fixing wall plugs with anti-rust protection.
- The pathway light develops a rust patina to protect against the weather.
- Clean without using ammonia, solvent or abrasive products.
CE
RoHs
IP55 Luminaire
IP66
IK10
Clase I
Pathway light: 13,6
*Approximate weight without packaging (kg)
