Lampelunas
1986
Award ADI FAD GOLD DELTA

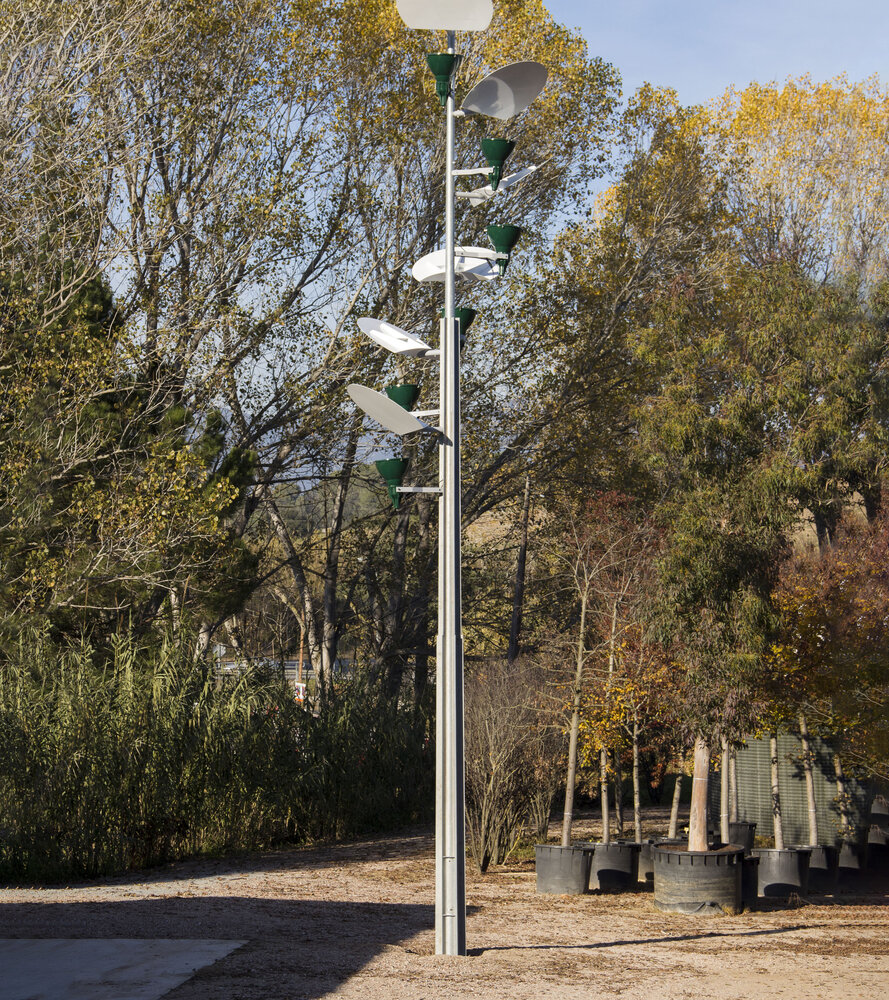

1986This streetlight is based on the idea of illuminating the public space with reflected light from the Moon. At night, it evokes the movements of the moon, with a spiral sequence of reflective shades. During the day, it is a graceful sculpture that interacts with the trees.
Light sculpture
The Lampelunas streetlight is a large lighting structure that is designed for unique spaces; an urban streetlight that consists of three or six Arne floodlights, producing pleasant general illumination and a dramatic presence.
Indirect
Widespot symmetrical
36 LEDs 3x59W, 6x59W
3000K 80CRI
Double level per control line.
Flux in header.
Programmed automation.
1-10V
DALI
SV 0,24m2
CE
UL
RoHs
IP66
Clase I
Floodlight made from die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. Interior reflector made from ABS-PC plastic. Diffuser made from tempered optical glass. A2 stainless steel screws and metal compression gland. Reflective shades made from zinc-plated S 235 JR steel, painted finish. Attachment bracket for floodlight and tapered column, 9 or 12 m in height, reinforced with brackets from the base, in hot-dip galvanized steel, painted finish.
*The colors shown are simply indicative. (Other colors on request)
**Ask about finishes for marine environments
White
Light grey
Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts, 20 cm below the pavement level. The element is supplied disassembled, in four components: floodlight, shade, bracket, and column. Installation and assembly instructions, screws, template, and anchor bolts included.
Includes pressure compensation valve and 10kV surge protector (CE).
Clean with a soft cloth; do not use ammonia, solvent, or abrasive products.
9 m streetlight: 460
12 m streetlight: 579
Shade: 37
*Approximate weight without packaging (kg)
