Degree of protection of light fixtures against the penetration of solids and liquids.
IEC 529 - EN 60529 Standard.
(First digit – Solids / Second digit – Liquids)
IP55
5. Protected against dust penetration.
5. Protected against jets of water.
IP65
6. Hermetically protected against dust.
5. Protected against jets of water.
IP66
6. Hermetically protected against dust.
6. Protected against sea swells and similar.
Degree of protection against mechanical impacts provided by the enclosure.
In accordance with EN 50102.
IK08 (0.5 J), IK09 (1 J), IK10 (2 J).
CLASS I.
Functional insulation in all its parts and ground connection.
CLASS II.
Double reinforced insulation to avoid voltage in exposed metal parts.
Product certificates
All our products comply with applicable European Directives and Standards, authorizing free circulation within the European Economic Area (EEA). We also comply with the Electromagnetic Compatibility (EMC) Directive and the Low Voltage Directive. We certify with ENAC-accredited external laboratories.
We comply with the Restriction of Hazardous Substances (RoHS) Directive for electrical and electronic components. We also comply with the Waste Directive (RAEE/WEEE) for respectful waste management.
Modular pergola

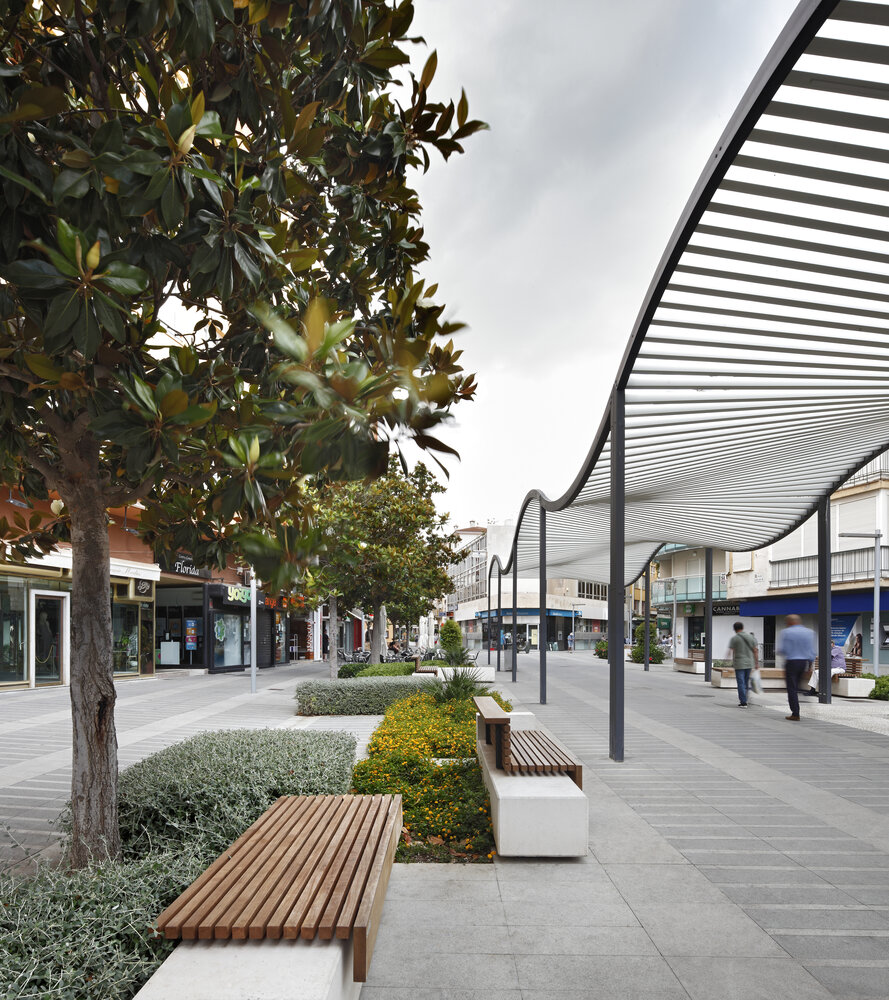

The wavy covering of this urban pergola, in a line, with concave and convex arcs, or just concave arcs, produces a regulated, calm, continuous area that reconfigures daytime and night-time activities, with two height clearances. The Onda pergola represents a pleasant shelter in the air, which promotes communal use and takes back outdoor space for the citizens.
- Great shade coverage of 25 m2 formed by twenty-two 110×110 mm crossbeams made from extruded 6063-T5 aluminium, anodised and painted finish with C3 protection.
- Supporting structure created with four 200×200 mm pillars and two 200×100 mm girders made from hot-dip galvanized S275 JR steel, painted finish with C3 protection.
- A2 stainless steel screws.
Structure
Dark grey
Cover
Light grey
The colours shown are purely indicative.
Other colours are available upon request.
Check finishes for marine environments.
System power (W)
High efficiency optical unit
- 2x 1,5m Lineal LED 22,5W
Colour temperature (K)
- 3300K 80CRI
Pergola
Urban
All our products support remote regulation, both individually and in groups, through the most standardised control systems, significantly reducing energy consumption and eliminating light pollution. We adapt our products to safeguard biodiversity and respect circadian rhythms, eliminating harmful wavelengths.
Our luminaires comply with the American IESNA LM80 and TM21 standards.
1-10V / 0-10V
Analog one-way regulation protocol that, through a signal between 1 or 0 and 10 V, allows remote linear control of the luminous flux between 10% or 0% and 100%. The standard programming is as follows: Vi ≥ 8V – 100%; Vi ≤ 1V – 10%.
DALI
Two-way digital communication protocol (Digital Addressable Lighting Interface) that allows grouping, regulating, and turning off the luminaire, using an 8-bit resolution with 254 regulation steps and receiving information about its status for maintenance.
Automatic programming
Individual, self-managed programming in the product and bi-directional. It is configured prior to installation. It is useful in projects that require a single pattern throughout the product’s life. It incorporates automatic regulation steps with geolocation and real nighttime cycles.
Example: 100% from 21:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 05:00; 70% from 05:00 to 08:00.
Automatic control panel programming
Individual, self-managed programming in the control panel and one-way. It is configured prior to installation. It can coexist with other analog voltage reduction technologies, such as phase-cut. It is useful in projects that need different patterns throughout the year or the product’s life.
Example: Summer 100% from 21:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 05:00; Winter 100% from 16:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 08:00.
Command line programming
Group regulation, in the control panel and one-way. It requires the installation of an additional control electrical line besides the power line (2×2.5mm2). It is useful in projects that need simplified regulation.
Lighting Flow dimmer programming
Group regulation, in the control panel and one-way. It requires the installation of a stabilizer/voltage regulator in the control panel and product configuration to interpret the correlation between line voltage and power. It is useful in projects that need a simplified system with existing regulators.
Example: Vi ≥ 230V – 100%; Vi ≤ 185V – 60%
Constant Luminous Management (CLM)
Optional function parallel to the programming that maintains the project illumination levels constant throughout the installation’s life, increasing the luminaire’s power proportionally to the LED depreciation. Our standard programming is 0h 80%; 60,000h 100%.
Temperature control
Optional automatic protection to safeguard the integrity of the lighting components. It monitors the maximum temperature, activating a flow reduction to recover an acceptable value.
Surge protection
Protector against voltage spikes caused by thunderstorms. Sized for a maximum discharge current of 10kA.
- Pillars fixed in a concrete block on-site, 20 cm below the pavement level, with groove for electrical connection for the version with light, and four expansion wall plugs per column.
- Entirely mechanical installation, with no welds, using A2 stainless steel screws.
- The element is supplied disassembled, in three components: pillars, girders, crossbeams.
- Installation and assembly instructions, screws, template, and expansion wall plugs included.
- Covers can be shortened, creating lines in four directions, in waves or in arcs, with a lower minimum working height of 4.8 m.
- Does not require functional maintenance.
- Element calculated for type II terrain and wind of 29 m/s, with ground made from loose or moist sand with medium compactness (E0= 4800 kN/m2) and HM-20 concrete foundations.
- We offer adaptations for more demanding terrain typologies and climate conditions.
CE
RoHs
IP67
IK08
Clase III
Initial module: 1596
Line module: 1282
*Approximate weight without packaging (kg)
