The Arne Urban floodlight elegantly integrates into any urban space, with multiple solutions that allow it to adapt to the most demanding of programs. The floodlight has a renewed appearance and improved installation, maintenance, and durability.

Urbidermis Team

Urbidermis Team

Since its inception in 1987 as the Urban Division of Santa & Cole, Urbidermis has comprised professionals from various disciplines: architecture, design, engineering, programming, electronics and agro-environment, amongst others. A diverse group of people ready to collaborate and generate new elements and urban uses. Our team amasses holistic knowledge of the urban space. From its beginnings in the Urban Division and thanks to the town planning overhaul of Barcelona for the '92 Olympic games, it has collaborated and grown with notable national and international firms, applying the Santa&Cole know-how to the demanding, changing urban space. These collaborations take place with architecture, landscaping and lighting design studios as well as with public administration bodies and private clients. Plaza de las Glòries in Barcelona; Parque Cuña Verde de O’Donnell in Madrid; Plaza Costa del Sol in Torremolinos, Málaga; Marktplatz in Karlsruhe, Germany; Piazza Garibaldi in Naples; Parc Explor Wendel in Petite-Rosselle, France; the Genipa Shopping Centre in Martinique; the Greenwich Peninsula in London; and the Underline in Miami are some of the results. We have a team with experience and skills in the current product types: lighting, furniture, microarchitecture and vegetation. Knowledge focussed on improving durability and resistance to climate, minimising installation and maintenance costs, the use of low impact, better quality materials, improved comfort and efficiency.  To meet the technological needs of cities, the Urbidermis team is developing connected IoT solutions to offer digital services that provide new features, cost reductions or the production of energy, and also sustainable solutions to bring in vegetation elements that are adapted to the urban environment. We also offer consultancy services in forestry and design in relation to the urban space the world over. Our goal is to share our knowledge to boost the transition towards more sustainable, social and technological cities. The Urbidermis team have combined their professional careers with the academic world through numerous universities, speeches, tribunals and professorships; ELISAVA, EINA, ETSAB, IED, IAAC, UIC, ESADE, ENSAM. They also actively collaborate with associations such as the European Forest Institute, Barcelona Global, Landscape Architecture Foundation, the FAD and the BCD, in congresses and exhibitions. The huge paradigm shift that forms the basis for the sustainability model of cities has inspired us to participate in the projects of the United Nations Global Compact and the Sustainable Markets Initiative Terra Carta. The Arne projector (2013) and the Arne S projector (2018), the Aro bench and the Aro border (2020), the Persol pergola (2021), the Palladio canopy (2020) and the Humo ashtray (2007) are all designs by the Urbidermis team. Know more

imagen de perfil

Iluminación urbana con aplique de Arne S de Urbidermis Santa & Cole

Downloads

Clear and versatile

The Arne floodlight is a tribute to Danish design. It’s clarity and versatility make it a superb lighting system for the majority of urban and architectural spaces. With a great variety of adjustable direct or indirect lighting supports, for installation on a column, catenary or wall, the Arne urban floodlight provides functional illumination for parks, squares, historical monuments, and roads. It has a wide range of specific lighting layouts, and increased energy efficiency.

Symmetric

Wideflood

Flood

Medium

Spot

Asymmetric

Type II

Type IV

Type III

Indirect

Widespot symmetrical

18 LEDs 21W, 30W, 40W
36 LEDs 40W, 56W, 78W
3000K-4000K 80CRI

Double level per control line.
Flux in header.
Programmed automation.

1-10V

DALI

SV 0,04m2

CE

UL

RoHs

IP66

IK08

Clase I

Floodlight made from die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. Interior reflector made from ABS-PC plastic. Diffuser made from tempered optical glass. A2 stainless steel screws and metal compression gland.

*The colors shown are simply indicative. (Other colors on request)
**Ask about finishes for marine environments

Gris_claro

Light grey

Gris_medio

Medium grey

Gris_oscuro

Dark grey

Includes pressure compensation valve and 10kV surge protector (CE).

Clean with a soft cloth; do not use ammonia, solvent, or abrasive products.

LED lifetime: TM21 L90 (10k) > 100.000 h.

Symmetric

Wideflood

Flood

Medium

Spot

Asymmetric

Type II

Type IV

Type III

Indirect

Widespot symmetrical

18 LEDs 21W, 30W, 40W
36 LEDs 40W, 56W, 78W
3000K-4000K 80CRI

Double level per control line.
Flux in header.
Programmed automation.

1-10V

DALI

SV 0,04m2

CE

UL

RoHs

IP66

IK08

Clase I

Floodlight made from die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. Interior reflector made from ABS-PC plastic. Diffuser made from tempered optical glass. A2 stainless steel screws and metal compression gland.

*The colors shown are simply indicative. (Other colors on request)
**Ask about finishes for marine environments

Gris_claro

Light grey

Gris_medio

Medium grey

Gris_oscuro

Dark grey

Includes pressure compensation valve and 10kV surge protector (CE).

Clean with a soft cloth; do not use ammonia, solvent, or abrasive products.

LED lifetime: TM21 L90 (10k) > 100.000 h.

20220512-Soain-Valencia-Ordenacion-Entorno-Mercado-Central-Valencia-ARP-Equipo-Urbidermis-05-copia
Proyectores-Arne-Descripcion-02-Web-x1000
20230712-Spain-Barcelona-Eixos-Verds-Consell-de-Cent-ARP-CAF-HAB-HAM-Claudia-Maurino-02-x1000
Proyectores-Arne-Descripcion-04-Web-x1000
Proyectores-Arne-Descripcion-05-Web-x1000
Proyectores-Arne-Descripcion-06-Web-x1000
Proyectores-Arne-Descripcion-07-Web-x1000

Applications

Column lighting is the most well-organized, functional option for urban projects. It harmonizes layouts from a technical perspective, with good rates of uniformity and suitable lighting values. Single or double accessories for up to six floodlights at different heights, allowing the light to be directed wherever necessary, due to the three axes of rotation.

AISI304 stainless steel bracket and support made from die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 4.40 m, 5.20 m, 6.00 m heights with one circular section segment of Ø127 mm; 7.80 m, 9.40 m, and 11.80 m heights with two circular section segments, the upper one of Ø127 mm and the lower one of Ø152 mm or Ø168 mm.

Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.

Installation and assembly instructions, screws, template, and anchor bolts included.

Floodlight: 5.7

Single column accessory: 0.4
Double column accessory: 0.7
Single retrofit column accessory: 0.7

*Approximate weight without packaging (kg)

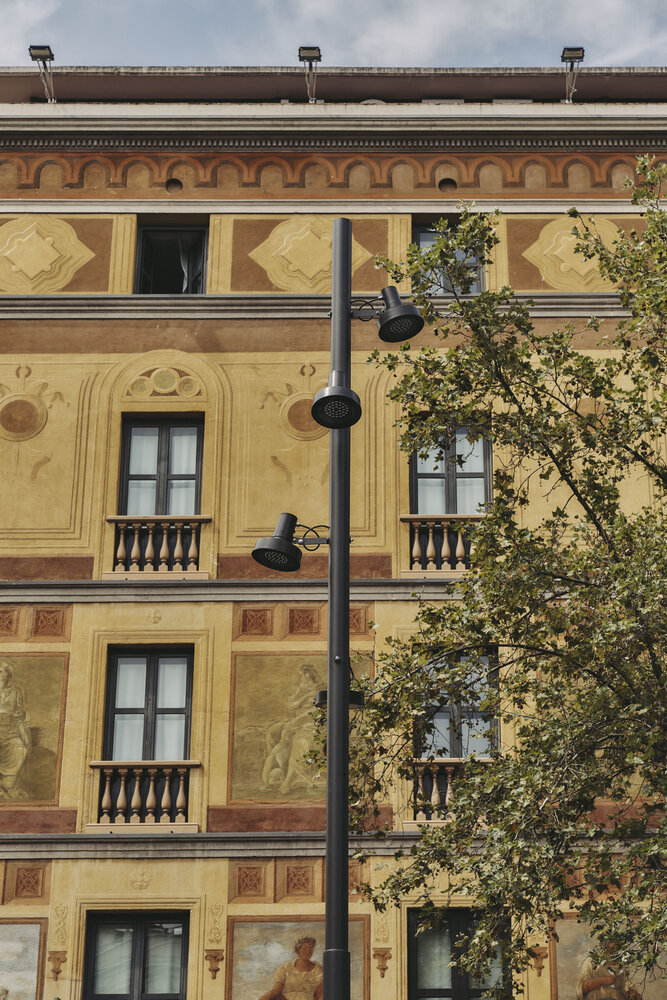

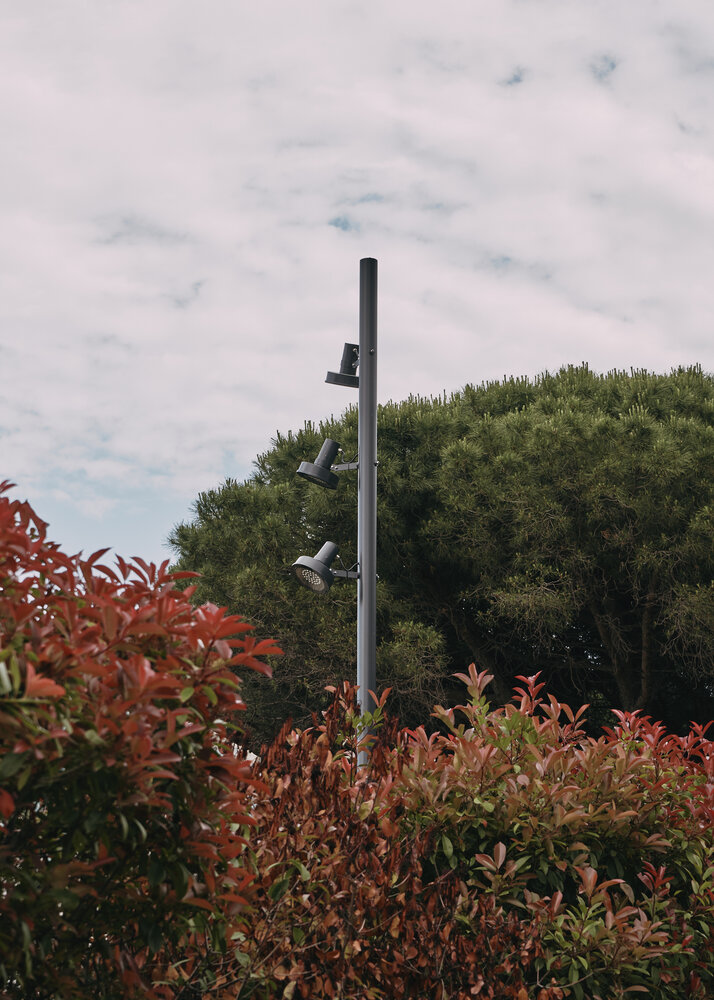

Multiple column lighting provides lighting that is aimed at large green areas, parking lots, and sporting or leisure facilities. Single or double multiple column lighting accessories allow up to four floodlights to be positioned at the same height, while retaining directional freedom.

Accessories made from AISI304 stainless steel and die cast EN-AC-46500 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Column made from hot-dip galvanized steel, painted finish: 6.00 m height with one circular section segment of Ø127 mm and 7.80 m height with two circular section segments, the upper one of Ø127 mm and the lower one of Ø152 mm.

Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.

Installation and assembly instructions, screws, template, and anchor bolts included.

Floodlight: 5.7

Single multiple column accessory: 2.3
Double multiple column accessory: 4.3

*Approximate weight without packaging (kg)

Indirect lighting provides a peaceful, calm atmosphere. It creates diffuse shadows and slows down actions carried out in the surrounding area. The indirect column or wall lighting accessory is used for wide open spaces: green areas, squares, paths, parking areas, or transit areas.

Accessories made from AISI304 stainless steel and die cast EN-AC-46500 aluminum, thermal coating finish with C3 anti-corrosive protection. Reflective shade made from PIMC, white finish. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 5.20 m, 6.00 m heights with one circular section segment of Ø127 mm; 7.80 m, 9.40 m heights with two circular section segments, the upper one of Ø127 mm and the lower one of Ø152 mm.

Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.

Installation and assembly instructions, screws, template, and anchor bolts included.

Floodlight: 5.7

Single indirect column accessory: 10
Double indirect column accessory: 20
Single indirect wall accessory: 10

*Approximate weight without packaging (kg)

Catenary lighting allows the layout of the light points to be separate from the rigidity of the program, creating spaces for people and nature. The accessory for installing a floodlight on a catenary cable (between Ø6-8 mm) allows for on-site rotation of 360º to direct the luminous flux.

AISI304 stainless steel bracket and attachment parts made from die cast EN-AC-46100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws.

Attach the accessory to the floodlight, and then the assembly to the catenary cable. The anchoring system allows for a cable diameter of between Ø6 and 8 mm.

Installation and assembly instructions, and screws included.

Catenary cable not included.

Floodlight: 5.7

Catenary accessory: 0.8

*Approximate weight without packaging (kg)

Lighting that is mounted on a wall, ceiling or floor provides illumination while maintaining coherence throughout the entire project layout. The floodlight can be directed to illuminate sculptures, architectural facades, plant elements, green areas, paths, squares, parking areas, landscapes or transit areas.

AISI304 stainless steel bracket and support made from die cast EN-AC-47100 aluminum, primed and painted finish. A2 stainless steel screws.

Attach the accessory to the surface and then the floodlight. The system is compatible with a recessed or surface electrical installation. Installation and assembly instructions, and screws included.

Fixing wall plugs not included.

Floodlight: 5.7
Wall lamp accessory: 1

*Approximate weight without packaging (kg)

We champion the comfort of people, and the absence of light pollution. Guaranteeing lighting comfort, with elements to control and partially block glare, is one of the main purposes of the new city, designed for people.

Shade made from 4 mm thermoformed opal optical PMMA methacrylate. AISI304 stainless steel attachment parts, grit blasted finish. A2 stainless steel screws.

Shade made from 4 mm thermoformed opal optical PMMA methacrylate. AISI304 stainless steel attachment parts, grit blasted finish. A2 stainless steel screws.

Floodlight: 5.7

Comfort accessory: 0,6

*Approximate weight without packaging (kg)

Column lighting is the most well-organized, functional option for urban projects. It harmonizes layouts from a technical perspective, with good rates of uniformity and suitable lighting values. Single or double accessories for up to six floodlights at different heights, allowing the light to be directed wherever necessary, due to the three axes of rotation.

AISI304 stainless steel bracket and support made from die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 4.40 m, 5.20 m, 6.00 m heights with one circular section segment of Ø127 mm; 7.80 m, 9.40 m, and 11.80 m heights with two circular section segments, the upper one of Ø127 mm and the lower one of Ø152 mm or Ø168 mm.

Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.

Installation and assembly instructions, screws, template, and anchor bolts included.

Floodlight: 5.7

Single column accessory: 0.4
Double column accessory: 0.7
Single retrofit column accessory: 0.7

*Approximate weight without packaging (kg)

Multiple column lighting provides lighting that is aimed at large green areas, parking lots, and sporting or leisure facilities. Single or double multiple column lighting accessories allow up to four floodlights to be positioned at the same height, while retaining directional freedom.

Accessories made from AISI304 stainless steel and die cast EN-AC-46500 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Column made from hot-dip galvanized steel, painted finish: 6.00 m height with one circular section segment of Ø127 mm and 7.80 m height with two circular section segments, the upper one of Ø127 mm and the lower one of Ø152 mm.

Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.

Installation and assembly instructions, screws, template, and anchor bolts included.

Floodlight: 5.7

Single multiple column accessory: 2.3
Double multiple column accessory: 4.3

*Approximate weight without packaging (kg)

Indirect lighting provides a peaceful, calm atmosphere. It creates diffuse shadows and slows down actions carried out in the surrounding area. The indirect column or wall lighting accessory is used for wide open spaces: green areas, squares, paths, parking areas, or transit areas.

Accessories made from AISI304 stainless steel and die cast EN-AC-46500 aluminum, thermal coating finish with C3 anti-corrosive protection. Reflective shade made from PIMC, white finish. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 5.20 m, 6.00 m heights with one circular section segment of Ø127 mm; 7.80 m, 9.40 m heights with two circular section segments, the upper one of Ø127 mm and the lower one of Ø152 mm.

Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.

Installation and assembly instructions, screws, template, and anchor bolts included.

Floodlight: 5.7

Single indirect column accessory: 10
Double indirect column accessory: 20
Single indirect wall accessory: 10

*Approximate weight without packaging (kg)

Catenary lighting allows the layout of the light points to be separate from the rigidity of the program, creating spaces for people and nature. The accessory for installing a floodlight on a catenary cable (between Ø6-8 mm) allows for on-site rotation of 360º to direct the luminous flux.

AISI304 stainless steel bracket and attachment parts made from die cast EN-AC-46100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws.

Attach the accessory to the floodlight, and then the assembly to the catenary cable. The anchoring system allows for a cable diameter of between Ø6 and 8 mm.

Installation and assembly instructions, and screws included.

Catenary cable not included.

Floodlight: 5.7

Catenary accessory: 0.8

*Approximate weight without packaging (kg)

Lighting that is mounted on a wall, ceiling or floor provides illumination while maintaining coherence throughout the entire project layout. The floodlight can be directed to illuminate sculptures, architectural facades, plant elements, green areas, paths, squares, parking areas, landscapes or transit areas.

AISI304 stainless steel bracket and support made from die cast EN-AC-47100 aluminum, primed and painted finish. A2 stainless steel screws.

Attach the accessory to the surface and then the floodlight. The system is compatible with a recessed or surface electrical installation. Installation and assembly instructions, and screws included.

Fixing wall plugs not included.

Floodlight: 5.7
Wall lamp accessory: 1

*Approximate weight without packaging (kg)

We champion the comfort of people, and the absence of light pollution. Guaranteeing lighting comfort, with elements to control and partially block glare, is one of the main purposes of the new city, designed for people.

Shade made from 4 mm thermoformed opal optical PMMA methacrylate. AISI304 stainless steel attachment parts, grit blasted finish. A2 stainless steel screws.

Shade made from 4 mm thermoformed opal optical PMMA methacrylate. AISI304 stainless steel attachment parts, grit blasted finish. A2 stainless steel screws.

Floodlight: 5.7

Comfort accessory: 0,6

*Approximate weight without packaging (kg)
