Gunnar
2020
The small, robustly built Gunnar floodlight is inspired by the architectural orders and Nordic design of Gunnar Asplund. It provides uniqueness and functionality in the outdoor space.
Antoni Roselló
Antoni Roselló explored various options during his academic studies, first at the School of Surveyors of Barcelona (1963) and, then, at the School of Fine Arts in the same city (1967). During this period as a student he worked in the studio of the architect Manuel Baldrich and in Ricardo Bofill's Taller de Arquitectura. From the 1970s onwards he practised drawing, painting and sculpture without interruption, beginning to reflect on many of the themes that would go on to recur in his work, now framed within the field of architecture. Throughout his entire career he collaborated with various architecture studios, delving deeper into the culture of public spaces and the city dimension. He carried out different projects related to architecture, microarchitecture and urban sculpture, linking symbolism with utility. From the mid-1980s he became interested by industrial design, achieving significant success and recognition in this activity. He has been one of the most representative figures of urban design in Spain, especially renowned for such emblematic elements as the ONCE lottery booth (1986), the Barcelona tram stops or his great urban sculptures for Barcelona, Madrid or Pamplona.Some of his work has been recognised with various design awards. He won several ADI-FAD Silver Deltas for different projects such as the Olimpia playground in 1992, the Mobile Bar Unit (MBU) in 1993 or the All Purpose Mobile Unit (APMU) in 2003, among others. In 2004 he was jointly awarded, with Rafael de Cáceres, with the City of Barcelona Award for the Barcelona Metropolitan Tramway stations project. Antoni Roselló is the author of various Urbidermis catalogue products, comprising both street furniture and lighting: the Maya litter bin, the Mondrian tree grate, the Skyline pathway light and the Gunnar lighting system. All of them stand out for their singularity and their ability to transform outdoor spaces into richer and more expressive environments. Know more
Directional lighting
A wide variety of adjustable supports is provided, for installing the floodlight on columns, catenaries or vertical walls. With a wide range of lighting layouts that are more energy efficient, the Gunnar urban floodlight provides functional quality at different heights, for roads, green spaces or buildings.
Symmetric
Wideflood
Flood
Medium
Spot
Type II+II
Type V
Asymmetric
Type II
Type IV
Type III
12 LEDs 15W, 21W, 29W
18 LEDs 20W, 29W, 40W
COB 20W, 28W, 39W
3000K-4000K 80CRI
Double level per control line.
Flux in header.
Programmed automation.
1-10V
DALI
SV 0,05m2
CE
UL
RoHs
IP66
IK08
Clase I
Floodlight made from die cast EN-AC-47100 aluminum and 6063-T5 extruded aluminum, thermal coating finish with C3 anti-corrosive protection. Interior reflector made from injected ABS-PC. Diffuser made from tempered optical glass. A2 stainless steel screws and metal compression gland.
*The colors shown are simply indicative. (Other colors on request)
**Ask about finishes for marine environments
Light grey
Medium grey
Dark grey
Includes pressure compensation valve and 10kV surge protector (CE).
Clean with a soft cloth; do not use ammonia, solvent, or abrasive products.
LED lifetime: TM21 L90 (10k) > 100.000 h.
Symmetric
Wideflood
Flood
Medium
Spot
Type II+II
Type V
Asymmetric
Type II
Type IV
Type III
12 LEDs 15W, 21W, 29W
18 LEDs 20W, 29W, 40W
COB 20W, 28W, 39W
3000K-4000K 80CRI
Double level per control line.
Flux in header.
Programmed automation.
1-10V
DALI
SV 0,05m2
CE
UL
RoHs
IP66
IK08
Clase I
Floodlight made from die cast EN-AC-47100 aluminum and 6063-T5 extruded aluminum, thermal coating finish with C3 anti-corrosive protection. Interior reflector made from injected ABS-PC. Diffuser made from tempered optical glass. A2 stainless steel screws and metal compression gland.
*The colors shown are simply indicative. (Other colors on request)
**Ask about finishes for marine environments
Light grey
Medium grey
Dark grey
Includes pressure compensation valve and 10kV surge protector (CE).
Clean with a soft cloth; do not use ammonia, solvent, or abrasive products.
LED lifetime: TM21 L90 (10k) > 100.000 h.
Applications

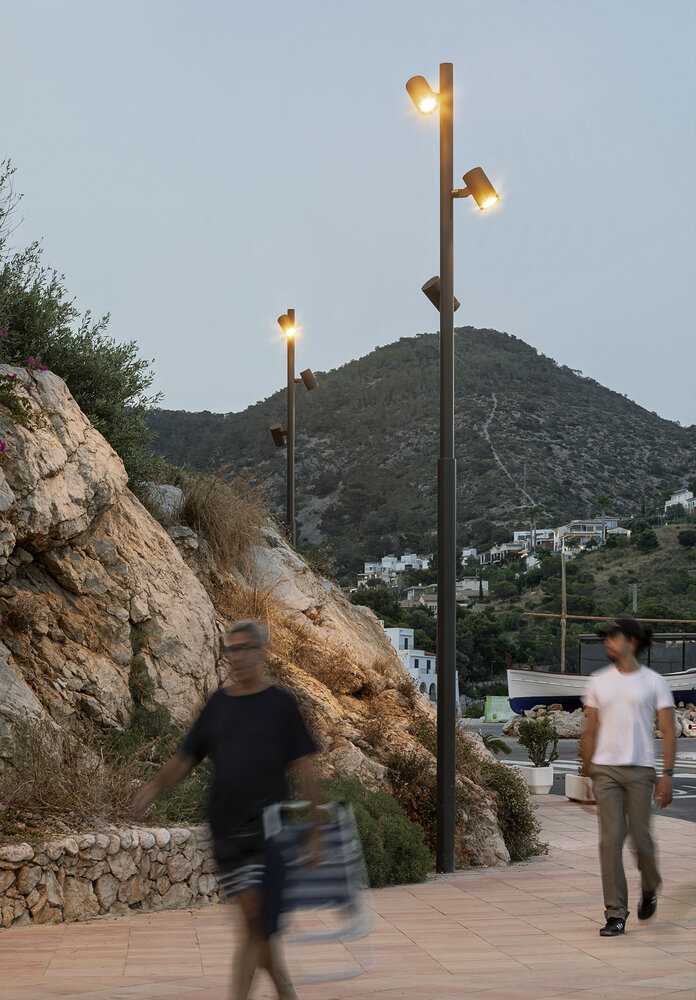

Column lighting is the most well-organized, functional option for urban projects. It harmonizes layouts from a technical perspective, with good rates of uniformity and suitable lighting values. Accessories for up to four floodlights at different heights, allowing the light to be directed wherever necessary, due to the two axes of rotation.
Bracket made from die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Cylindrical tube column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 3.60 m, 4.40 m, 5.20 m heights with one circular section segment of Ø114.3 mm; 7.00 m, 7.80 m and 9.40 m heights with two circular section segments, the upper one of Ø114.3 mm and the lower one of Ø152 mm.
Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.
Installation and assembly instructions, screws, template, and anchor bolts included.
Floodlight: 4,7
Single column accessory: 0,8
Single retrofit column accessory: 0,8
Double column accessory: 1,4
*Approximate weight without packaging (kg)
Single or double fixed column lighting makes the element unique, and gives it the fairy-light look. A streetlight that, together with the comfort shades, provides illumination that is aimed at large green areas, pathways or calm areas.
Accessories made from extruded 6060-T5 aluminum and die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 4.40 m, 5.20 m and 6.00 m heights with one circular section segment of Ø114.3 mm.
Attach the accessory to the floodlight and then to the column. The accessory is delivered disassembled. Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.
Installation and assembly instructions, screws, template, and anchor bolts included.
Floodlight: 4,7
Single fixed column accessory: 0,8
Single fixed column accessory: 1,5
*Approximate weight without packaging (kg)
Catenary lighting allows the layout of the light points to be separate from the rigidity of the program, creating spaces designed for people and nature. The accessory for installing a floodlight on a catenary cable (between Ø6-8 mm) allows for on-site rotation of 360º to direct the Gunnar floodlight.
Base and parts made from die cast EN-AC-46100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws.
The accessory is fixed to the floodlight. Place the assembly on the catenary cable. The anchoring system allows for a cable diameter of between Ø6 and 8 mm.
Installation and assembly instructions, and screws included.
Catenary cable not included.
Floodlight: 4,7
Catenary accessory: 0.2
*Approximate weight without packaging (kg)
Lighting that is mounted on a wall, ceiling or floor provides illumination while maintaining coherence throughout the entire project layout. The floodlight can be directed to illuminate sculptures, architectural facades, plant elements, green areas, paths, squares, parking areas, landscapes or transit areas.
Die cast EN-AC-47100 aluminum support and base made from AISI304 stainless steel, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws.
Attach the accessory to the surface and then the floodlight. The system is compatible with a recessed or surface electrical installation. Installation and assembly instructions, and screws included.
Fixing wall plugs not included.
Floodlight: 4,7
Wall accessory: 1,3
Long wall accessory: 2,0
*Approximate weight without packaging (kg)
We champion the comfort of people, and the absence of light pollution. Guaranteeing lighting comfort, with elements to control and partially block glare, is one of the main purposes of the new city, designed for people. The 0% ULOR shade also eliminates luminous flux in the top half.
Diffuser shade made from 4 mm thermoformed opal optical PMMA methacrylate. 0% ULOR shade made from 1.2 mm thick 1050-0 aluminum, thermal coating finish with C3 anti-corrosive protection. AISI304 stainless steel attachment parts, grit blasted finish. A2 stainless steel screws.
Attach the accessory to the floodlight and then to the support. The accessory only modifies asymmetric layouts.
Floodlight: 4,7
Comfort accessory: 1,0
*Approximate weight without packaging (kg)
Column lighting is the most well-organized, functional option for urban projects. It harmonizes layouts from a technical perspective, with good rates of uniformity and suitable lighting values. Accessories for up to four floodlights at different heights, allowing the light to be directed wherever necessary, due to the two axes of rotation.
Bracket made from die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Cylindrical tube column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 3.60 m, 4.40 m, 5.20 m heights with one circular section segment of Ø114.3 mm; 7.00 m, 7.80 m and 9.40 m heights with two circular section segments, the upper one of Ø114.3 mm and the lower one of Ø152 mm.
Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.
Installation and assembly instructions, screws, template, and anchor bolts included.
Floodlight: 4,7
Single column accessory: 0,8
Single retrofit column accessory: 0,8
Double column accessory: 1,4
*Approximate weight without packaging (kg)
Single or double fixed column lighting makes the element unique, and gives it the fairy-light look. A streetlight that, together with the comfort shades, provides illumination that is aimed at large green areas, pathways or calm areas.
Accessories made from extruded 6060-T5 aluminum and die cast EN-AC-47100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 4.40 m, 5.20 m and 6.00 m heights with one circular section segment of Ø114.3 mm.
Attach the accessory to the floodlight and then to the column. The accessory is delivered disassembled. Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.
Installation and assembly instructions, screws, template, and anchor bolts included.
Floodlight: 4,7
Single fixed column accessory: 0,8
Single fixed column accessory: 1,5
*Approximate weight without packaging (kg)
Catenary lighting allows the layout of the light points to be separate from the rigidity of the program, creating spaces designed for people and nature. The accessory for installing a floodlight on a catenary cable (between Ø6-8 mm) allows for on-site rotation of 360º to direct the Gunnar floodlight.
Base and parts made from die cast EN-AC-46100 aluminum, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws.
The accessory is fixed to the floodlight. Place the assembly on the catenary cable. The anchoring system allows for a cable diameter of between Ø6 and 8 mm.
Installation and assembly instructions, and screws included.
Catenary cable not included.
Floodlight: 4,7
Catenary accessory: 0.2
*Approximate weight without packaging (kg)
Lighting that is mounted on a wall, ceiling or floor provides illumination while maintaining coherence throughout the entire project layout. The floodlight can be directed to illuminate sculptures, architectural facades, plant elements, green areas, paths, squares, parking areas, landscapes or transit areas.
Die cast EN-AC-47100 aluminum support and base made from AISI304 stainless steel, thermal coating finish with C3 anti-corrosive protection. A2 stainless steel screws.
Attach the accessory to the surface and then the floodlight. The system is compatible with a recessed or surface electrical installation. Installation and assembly instructions, and screws included.
Fixing wall plugs not included.
Floodlight: 4,7
Wall accessory: 1,3
Long wall accessory: 2,0
*Approximate weight without packaging (kg)
We champion the comfort of people, and the absence of light pollution. Guaranteeing lighting comfort, with elements to control and partially block glare, is one of the main purposes of the new city, designed for people. The 0% ULOR shade also eliminates luminous flux in the top half.
Diffuser shade made from 4 mm thermoformed opal optical PMMA methacrylate. 0% ULOR shade made from 1.2 mm thick 1050-0 aluminum, thermal coating finish with C3 anti-corrosive protection. AISI304 stainless steel attachment parts, grit blasted finish. A2 stainless steel screws.
Attach the accessory to the floodlight and then to the support. The accessory only modifies asymmetric layouts.
Floodlight: 4,7
Comfort accessory: 1,0
*Approximate weight without packaging (kg)
