Vía Láctea

1990

Highly elegant and functional modular urban pergola; the ideal complement for undertaking social and territorial transformation. Its formal expression demonstrates the wish to create an organized, harmonious system of outdoor microarchitecture.

Batlle i Roig

Batlle i Roig

Enric Batlle Durany and Joan Roig Duran obtained architecture degrees from the Barcelona Higher Technical School for Architecture (ETSAB). Enric obtained a Doctorate from the ETSAB. Joan Roig met Enric Batlle while studying architecture at the ETSAB; they both graduated in 1973. Their friendship was consolidated after finding themselves carrying out internships together in the office of Martinez Lapeña - Torres Arquitectos. Finding that they worked very well together, in 1981, after being awarded the Escorxador park and Roques Blanques Cemetery project, they decided to create their own architecture firm: Batlle i Roig. The 80s was a very dynamic decade for them. They executed large-scale national renovation projects on public structures, which consolidated the birth of a new generation of architects. Together with the institutions of the time, they renovated the urban identity of the Spanish landscape. Thanks to the system of contracting through open tenders, young architects had the opportunity to bid for various projects. Joan Roig and Enric Batlle took advantage of this opportunity to execute landscaping, town planning and architecture projects. Amongst their works during this period, the Alcañiz buildings, Alcorcón church and a wide repertoire of parks stand out. Influenced by Elías Torres to promote nature in the city, Batlle i Roig designed Parc de Pegaso in Sant Andreu, l’Hort de la Rectoría in Alella, Parc Central in Sant Cugat and Parc Catalunya de Sabadell, amongst many others. A true landscaping, green conquest. Over the years that followed, Joan Roig and Enric Batlle continued to design public spaces and in 1992, following the Barcelona Olympic Games, they began to manage large-scale architectural projects. This second phase brought them extensive knowledge of a more technical nature. Amongst the projects executed, worth noting are the Sant Boi and Viladecans residences and numerous corporate buildings, such as the new RACC offices in Barcelona, the Corporate Telephony University in Belloch and the FC Barcelona sports complex in Sant Joan Despi.This urban development following the Olympic Games gave rise to the need to address the challenge of urban furniture and lighting. That's when Joan Roig and Enric Batlle began their relationship with the Urban Department of Santa & Cole, now Urbidermis, collaborating in the design of elements for the renaturalised city and on emblematic projects. This relationship, consolidated years ago, is still present in projects such as Avenida Meridiana, the Ronda de Dalt roof structure and the Parc dels Ocellets in L'Hospitalet. Since 1984, they remain connected to the world of teaching, giving classes at the Barcelona Higher Technical School of Architecture (ETSAB), the Vallès Higher Technical School of Architecture (ETSAV) and Masters in Architecture of the Polytechnic University of Barcelona (UPC). Batlle and Roig are the designers behind various Urbidermis projects. The Atlántida fountain, a monolith of timeless shapes that breaks with the classic ornamental fountain design; the Moon bench, an urban element with straight lines and architectural forms, the epitomy of pure functionality; the 108 bench, an element designed to delimit and contain spaces and form lines of seats; the 108 streetlamp, a functional element born out of a right angle, with no delusions of grandeur; the Via Láctea streetlamp, designed to trace lines of light in the sky and the Via Láctea pergola, elegant and functional. Know more

imagen de perfil
Downloads

Details with elegance

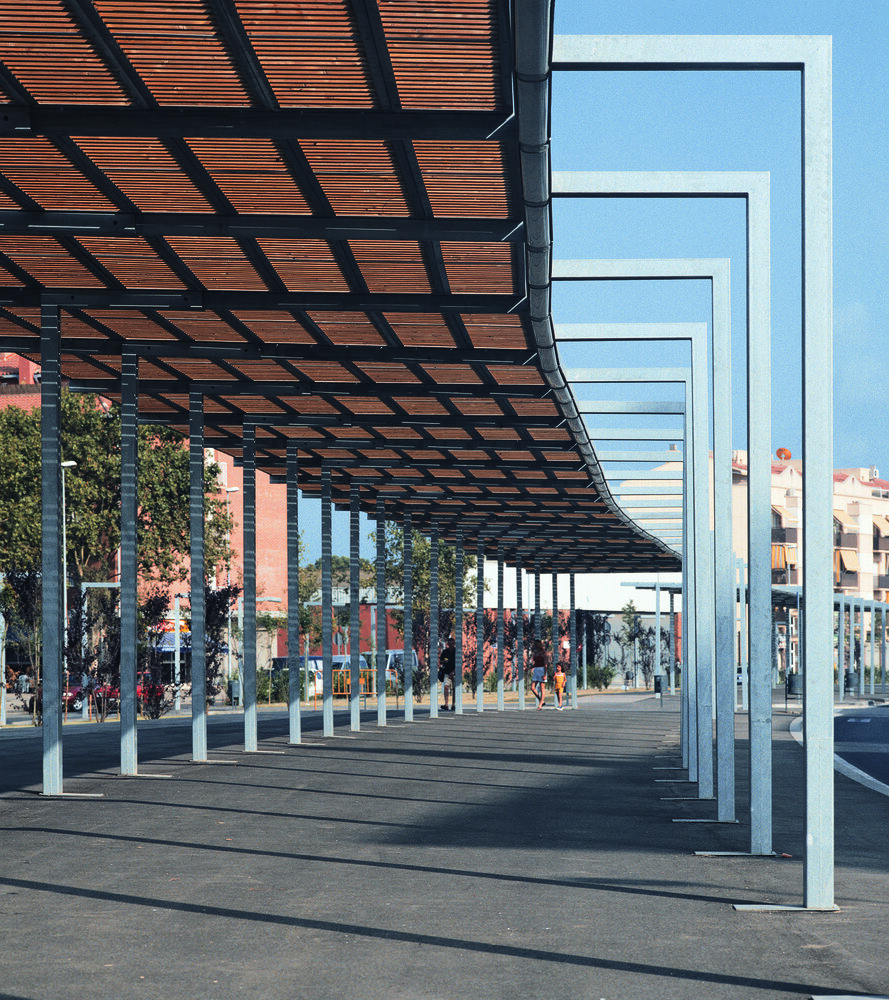

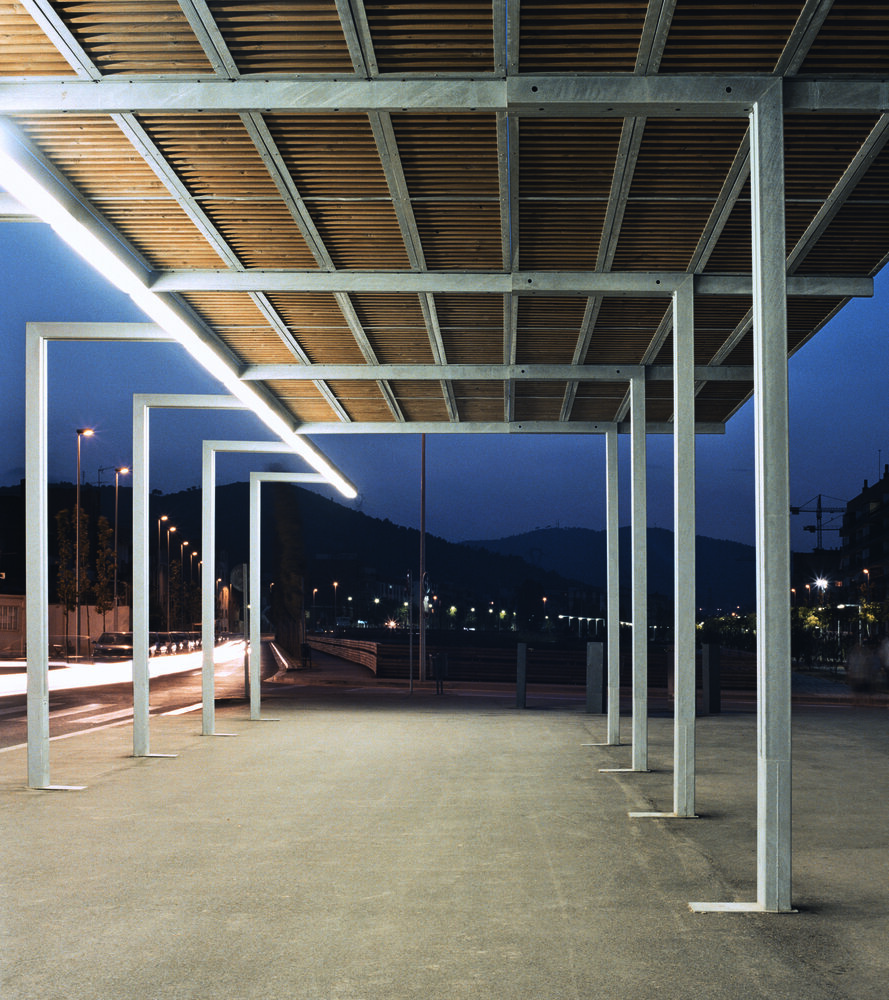

A pleasant daytime shade area, with a large wooden slatted covering, and linear lighting highlighted on one of the sides. The Vía Láctea pergola allows continuous areas to be created, which adapt to the layout of outdoor spaces.

Asymmetric

Type V

2x 1.5 m Linear LED 21W
3000K 80CRI

Double level per control line.
Flux in header.
Programmed automation.

1-10V

DALI

4.8 kWp per module (310 Wp x 8 photovoltaic panels)
STC (standard measurement conditions): 1000W/m² of irradiance, AM 1.5 spectral distribution, Temperature 25±2ºC

CE

RoHs

IP66

IK08

Clase I

Great shade coverage of 18 m2, consisting of photovoltaic panel modules made from 4 mm double-glazed tempered glass and highpowered PERC cells encapsulated in polymer, or consisting of eight modules of wooden slats, made from autoclave pine. Supporting structure created with two 100×50 mm side girders, three 150×100 mm rectangular base pillars and a 100×50 mm forked support made from hot-dip galvanized S275 JR steel, painted finish with C3 protection. Body for two luminaires, made from rectangular section of the same material and finish. Linear LED luminaire and polycarbonate diffuser. A2 stainless steel screws.





*The colors shown are simply indicative. (Other colors on request)
**Ask about finishes for marine environments

Structure

Gris_claro

Light grey

Cover

Pino-autoclave

Autoclave Pine

panel-solar

Photovoltaic panel

Pillars fixed in a concrete block on-site, 20 cm below the pavement level, with groove for electrical connection for the version with light, and four expansion wall plugs per column. Entirely mechanical installation, with no welds, using A2 stainless steel screws. The element is supplied disassembled, in six components: column, side column, supporting structure, wooden covering, body for luminaires, and luminaires. Installation and assembly instructions, screws, template, trim, and expansion wall plugs included.

Does not require functional maintenance, except to preserve the original color of the wooden slats and periodic cleaning of the photovoltaic panels.

Element calculated for type II terrain and wind of 29 m/s, with ground made from loose or moist sand with medium compactness (E0= 4800 kN/m2) and HM-20 concrete foundations. We offer adaptations for more demanding terrain typologies and climate conditions.

Initial module: 844
Line module: 725

*Approximate weight without packaging (kg)

Asymmetric

Type V

2x 1.5 m Linear LED 21W
3000K 80CRI

Double level per control line.
Flux in header.
Programmed automation.

1-10V

DALI

4.8 kWp per module (310 Wp x 8 photovoltaic panels)
STC (standard measurement conditions): 1000W/m² of irradiance, AM 1.5 spectral distribution, Temperature 25±2ºC

CE

RoHs

IP66

IK08

Clase I

Great shade coverage of 18 m2, consisting of photovoltaic panel modules made from 4 mm double-glazed tempered glass and highpowered PERC cells encapsulated in polymer, or consisting of eight modules of wooden slats, made from autoclave pine. Supporting structure created with two 100×50 mm side girders, three 150×100 mm rectangular base pillars and a 100×50 mm forked support made from hot-dip galvanized S275 JR steel, painted finish with C3 protection. Body for two luminaires, made from rectangular section of the same material and finish. Linear LED luminaire and polycarbonate diffuser. A2 stainless steel screws.





*The colors shown are simply indicative. (Other colors on request)
**Ask about finishes for marine environments

Structure

Gris_claro

Light grey

Cover

Pino-autoclave

Autoclave Pine

panel-solar

Photovoltaic panel

Pillars fixed in a concrete block on-site, 20 cm below the pavement level, with groove for electrical connection for the version with light, and four expansion wall plugs per column. Entirely mechanical installation, with no welds, using A2 stainless steel screws. The element is supplied disassembled, in six components: column, side column, supporting structure, wooden covering, body for luminaires, and luminaires. Installation and assembly instructions, screws, template, trim, and expansion wall plugs included.

Does not require functional maintenance, except to preserve the original color of the wooden slats and periodic cleaning of the photovoltaic panels.

Element calculated for type II terrain and wind of 29 m/s, with ground made from loose or moist sand with medium compactness (E0= 4800 kN/m2) and HM-20 concrete foundations. We offer adaptations for more demanding terrain typologies and climate conditions.

Initial module: 844
Line module: 725

*Approximate weight without packaging (kg)

Pergola-Via-Lactea-Descripcion-01
Pergola-Via-Lactea-Descripcion-02-Web-x1000
Pergola-Via-Lactea-Descripcion-03-Web-x1000
20230508-Spain-Mallorca-Manacor-Porto-Cristo-VLP-AOB-Tomeu-Canyellas-05-x1000
Pergola-Via-Lactea-Descripcion-04-Web-x1000
20150204-Spain-Madrid-Oficinas-Odonell-12-VLP-PLJ-Imagen-Subliminal-web-04-x1000
Pergola-Via-Lactea-Descripcion-06-Web-x1000
20150204-Spain-Madrid-Oficinas-Odonell-12-VLP-PLJ-Imagen-Subliminal-web-03-x1000
Pergola-Via-Lactea-Descripcion-08-Web-x1000
Pergola-Via-Lactea-Descripcion-09-Web-x1000

Typology

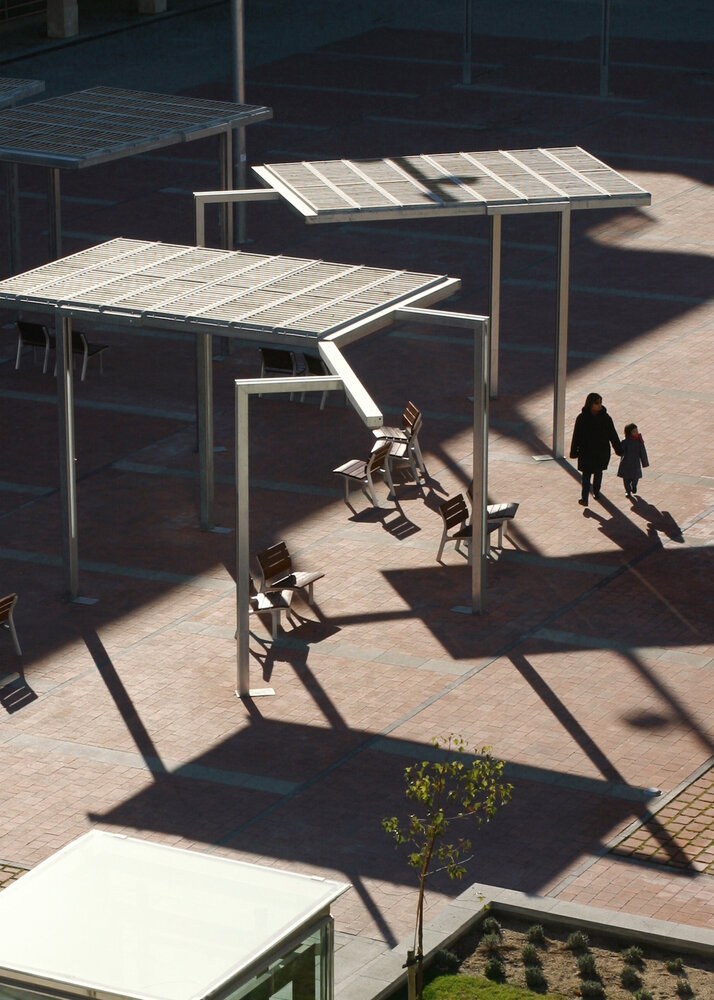

Photovoltaic canopies provide major benefits to the community. A clean, renewable and local energy-producing space and outdoor functional shelter, with well measured and proportioned construction details.

Initial module: 844
Line module: 725

*Approximate weight without packaging (kg)

Shade canopies provide structure for city scenarios that promote new habits and areas of interaction. Projected shade made from weather and wear-resistant materials, with stylish, well-proportioned details, that provides protection from sun and rain.

Initial module: 844
Line module: 725

*Approximate weight without packaging (kg)

Photovoltaic canopies provide major benefits to the community. A clean, renewable and local energy-producing space and outdoor functional shelter, with well measured and proportioned construction details.

Initial module: 844
Line module: 725

*Approximate weight without packaging (kg)

Shade canopies provide structure for city scenarios that promote new habits and areas of interaction. Projected shade made from weather and wear-resistant materials, with stylish, well-proportioned details, that provides protection from sun and rain.

Initial module: 844
Line module: 725

*Approximate weight without packaging (kg)
